1. Product Structures and Synergistic Style
1.1 Inherent Qualities of Constituent Phases

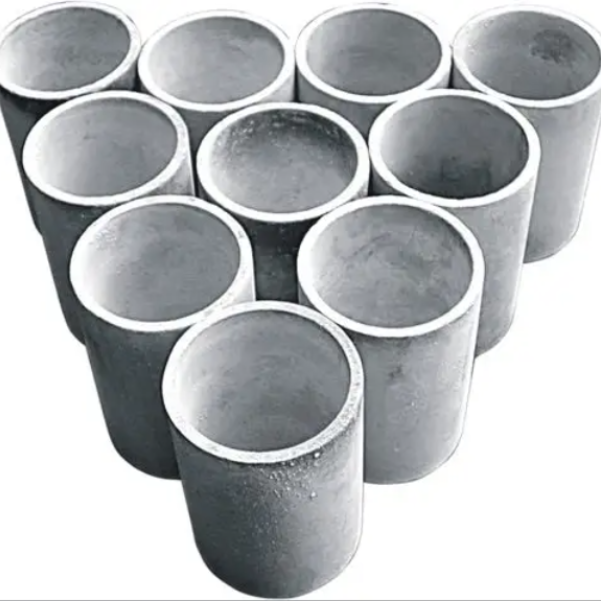

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si four N FOUR) and silicon carbide (SiC) are both covalently bound, non-oxide porcelains renowned for their phenomenal performance in high-temperature, corrosive, and mechanically demanding settings.
Silicon nitride exhibits superior fracture sturdiness, thermal shock resistance, and creep stability as a result of its distinct microstructure made up of extended β-Si ₃ N four grains that make it possible for fracture deflection and connecting mechanisms.
It preserves stamina as much as 1400 ° C and possesses a reasonably low thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal tensions throughout quick temperature level changes.
On the other hand, silicon carbide provides remarkable firmness, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it ideal for abrasive and radiative warmth dissipation applications.
Its wide bandgap (~ 3.3 eV for 4H-SiC) additionally confers exceptional electrical insulation and radiation resistance, helpful in nuclear and semiconductor contexts.
When integrated right into a composite, these materials display complementary actions: Si ₃ N ₄ boosts durability and damage tolerance, while SiC boosts thermal monitoring and put on resistance.
The resulting crossbreed ceramic accomplishes an equilibrium unattainable by either stage alone, forming a high-performance architectural material tailored for extreme solution conditions.
1.2 Compound Architecture and Microstructural Engineering
The style of Si three N FOUR– SiC composites includes specific control over stage distribution, grain morphology, and interfacial bonding to make the most of collaborating impacts.
Commonly, SiC is introduced as fine particulate reinforcement (ranging from submicron to 1 µm) within a Si four N four matrix, although functionally graded or layered designs are likewise explored for specialized applications.
Throughout sintering– usually through gas-pressure sintering (GENERAL PRACTITIONER) or hot pressing– SiC particles affect the nucleation and growth kinetics of β-Si ₃ N ₄ grains, commonly promoting finer and more evenly oriented microstructures.
This improvement improves mechanical homogeneity and decreases defect dimension, contributing to improved toughness and integrity.
Interfacial compatibility in between the two phases is essential; due to the fact that both are covalent porcelains with similar crystallographic proportion and thermal expansion habits, they develop coherent or semi-coherent borders that stand up to debonding under load.
Ingredients such as yttria (Y ₂ O SIX) and alumina (Al ₂ O SIX) are utilized as sintering help to advertise liquid-phase densification of Si four N ₄ without endangering the stability of SiC.
Nevertheless, extreme second stages can break down high-temperature performance, so make-up and handling have to be maximized to minimize glazed grain border movies.
2. Handling Strategies and Densification Difficulties
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Methods
Premium Si Four N ₄– SiC composites begin with homogeneous mixing of ultrafine, high-purity powders using damp sphere milling, attrition milling, or ultrasonic diffusion in organic or liquid media.
Accomplishing consistent diffusion is vital to avoid heap of SiC, which can serve as stress concentrators and lower fracture toughness.
Binders and dispersants are added to maintain suspensions for forming techniques such as slip spreading, tape casting, or injection molding, depending upon the wanted element geometry.
Environment-friendly bodies are then very carefully dried out and debound to remove organics before sintering, a procedure calling for controlled heating rates to stay clear of splitting or contorting.
For near-net-shape manufacturing, additive strategies like binder jetting or stereolithography are emerging, enabling complicated geometries formerly unreachable with traditional ceramic processing.
These methods call for customized feedstocks with enhanced rheology and eco-friendly strength, usually entailing polymer-derived ceramics or photosensitive resins packed with composite powders.
2.2 Sintering Systems and Stage Security
Densification of Si Two N FOUR– SiC composites is testing because of the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at sensible temperature levels.
Liquid-phase sintering utilizing rare-earth or alkaline planet oxides (e.g., Y ₂ O ₃, MgO) reduces the eutectic temperature level and boosts mass transport with a short-term silicate thaw.
Under gas stress (commonly 1– 10 MPa N ₂), this melt facilitates reformation, solution-precipitation, and last densification while reducing decomposition of Si two N FOUR.
The existence of SiC affects thickness and wettability of the fluid stage, possibly modifying grain growth anisotropy and last appearance.
Post-sintering heat therapies might be related to take shape residual amorphous phases at grain boundaries, enhancing high-temperature mechanical buildings and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are regularly made use of to verify phase purity, lack of unwanted additional phases (e.g., Si two N ₂ O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Tons
3.1 Stamina, Toughness, and Exhaustion Resistance
Si ₃ N FOUR– SiC composites demonstrate remarkable mechanical efficiency contrasted to monolithic ceramics, with flexural toughness going beyond 800 MPa and crack strength values getting to 7– 9 MPa · m ¹/ ².
The strengthening result of SiC fragments hinders misplacement activity and fracture proliferation, while the extended Si four N ₄ grains continue to provide strengthening through pull-out and connecting systems.
This dual-toughening method causes a material extremely resistant to influence, thermal cycling, and mechanical fatigue– important for rotating elements and architectural components in aerospace and energy systems.
Creep resistance continues to be outstanding approximately 1300 ° C, attributed to the stability of the covalent network and decreased grain boundary gliding when amorphous phases are reduced.
Firmness values typically range from 16 to 19 GPa, supplying superb wear and erosion resistance in abrasive atmospheres such as sand-laden flows or moving calls.
3.2 Thermal Management and Environmental Toughness
The addition of SiC substantially elevates the thermal conductivity of the composite, often doubling that of pure Si three N FOUR (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC web content and microstructure.
This enhanced warm transfer ability enables much more reliable thermal administration in components subjected to intense local home heating, such as burning linings or plasma-facing components.
The composite retains dimensional security under high thermal slopes, resisting spallation and splitting because of matched thermal development and high thermal shock parameter (R-value).
Oxidation resistance is another key advantage; SiC creates a safety silica (SiO TWO) layer upon direct exposure to oxygen at elevated temperatures, which additionally densifies and secures surface area flaws.
This passive layer shields both SiC and Si Six N FOUR (which likewise oxidizes to SiO ₂ and N TWO), ensuring long-lasting longevity in air, steam, or combustion environments.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Energy, and Industrial Systems
Si Six N ₄– SiC compounds are increasingly released in next-generation gas wind turbines, where they enable greater operating temperatures, enhanced fuel performance, and minimized air conditioning needs.
Parts such as turbine blades, combustor linings, and nozzle overview vanes take advantage of the material’s capability to endure thermal cycling and mechanical loading without significant destruction.
In nuclear reactors, specifically high-temperature gas-cooled reactors (HTGRs), these compounds work as fuel cladding or structural supports as a result of their neutron irradiation tolerance and fission product retention ability.
In commercial settings, they are made use of in molten metal handling, kiln furniture, and wear-resistant nozzles and bearings, where traditional steels would certainly stop working too soon.
Their light-weight nature (density ~ 3.2 g/cm THREE) likewise makes them eye-catching for aerospace propulsion and hypersonic car parts based on aerothermal home heating.
4.2 Advanced Production and Multifunctional Integration
Arising research focuses on creating functionally graded Si three N ₄– SiC frameworks, where structure differs spatially to enhance thermal, mechanical, or electromagnetic residential or commercial properties across a solitary part.
Hybrid systems incorporating CMC (ceramic matrix composite) styles with fiber reinforcement (e.g., SiC_f/ SiC– Si Two N ₄) press the boundaries of damage resistance and strain-to-failure.
Additive manufacturing of these composites allows topology-optimized heat exchangers, microreactors, and regenerative cooling channels with interior lattice structures unreachable by means of machining.
Additionally, their integral dielectric properties and thermal security make them candidates for radar-transparent radomes and antenna home windows in high-speed systems.
As demands grow for materials that do dependably under severe thermomechanical lots, Si five N ₄– SiC compounds stand for a critical development in ceramic design, merging effectiveness with capability in a solitary, sustainable platform.
In conclusion, silicon nitride– silicon carbide composite porcelains exhibit the power of materials-by-design, leveraging the toughness of two innovative ceramics to produce a crossbreed system with the ability of flourishing in the most serious operational environments.
Their continued advancement will certainly play a central duty ahead of time tidy energy, aerospace, and industrial modern technologies in the 21st century.
